Sevenge Cables
3/29 Single Core Copper Wire - 90 Meter
3/29 Single Core Copper Wire - 90 Meter
Couldn't load pickup availability

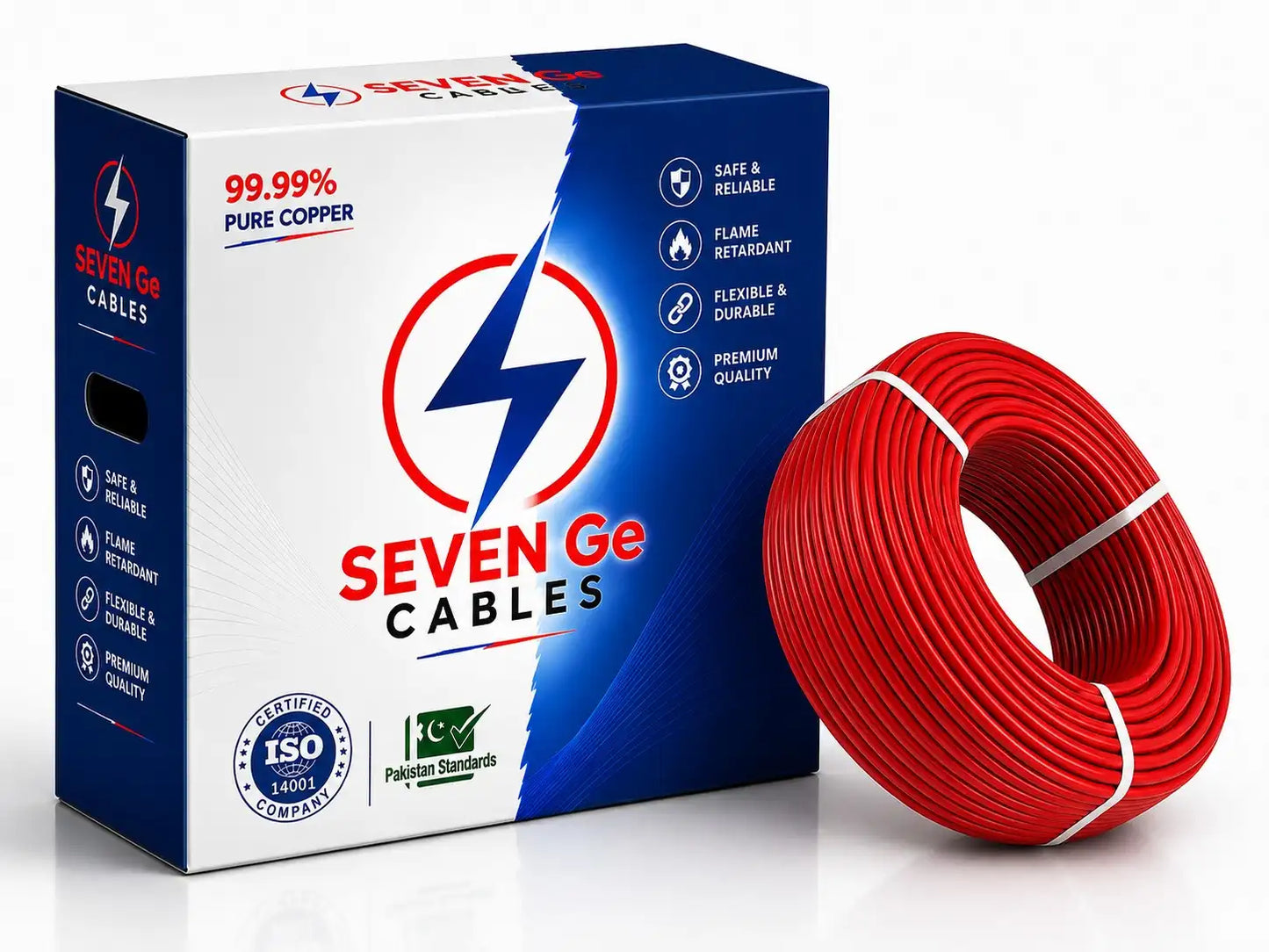

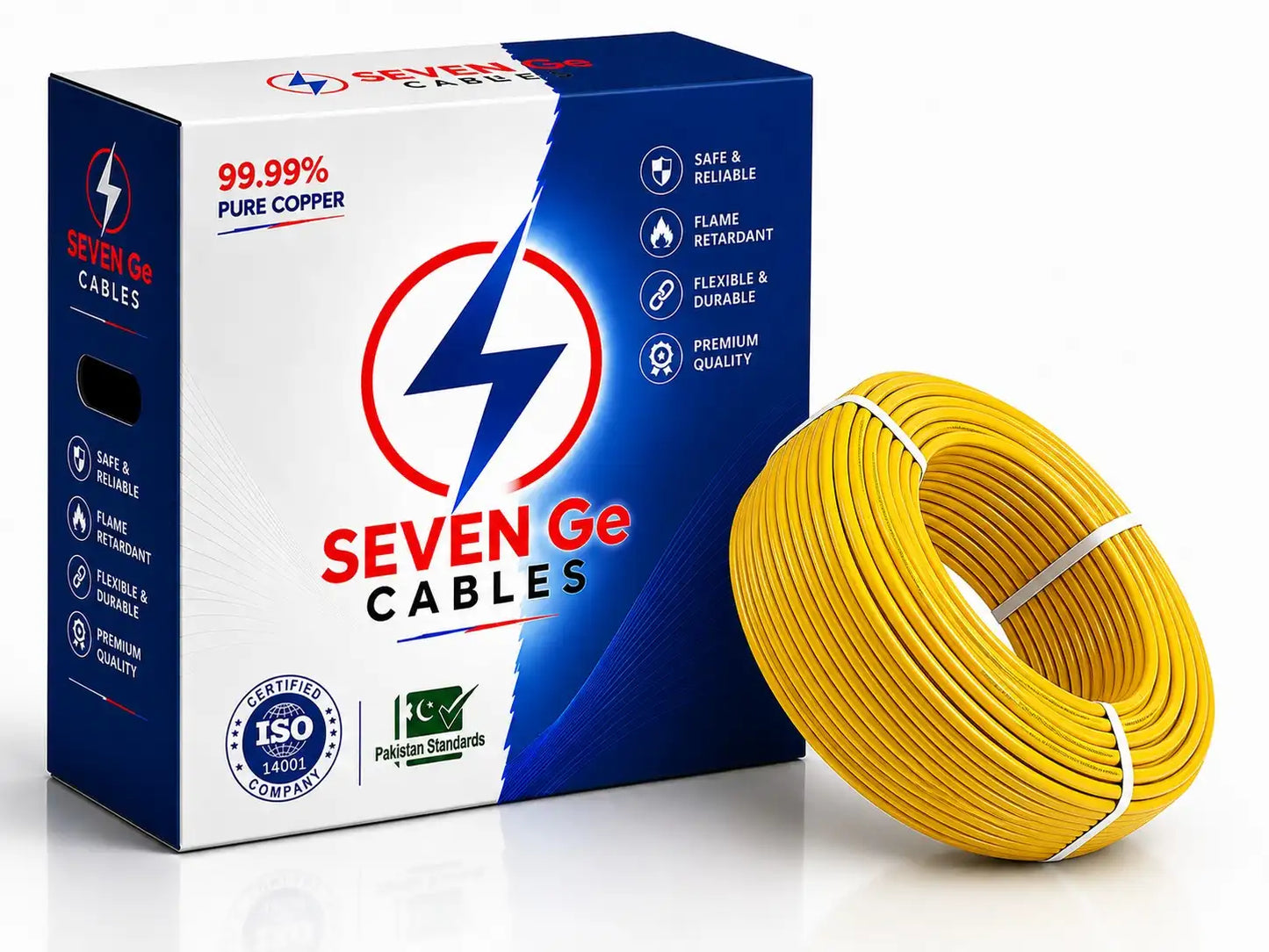

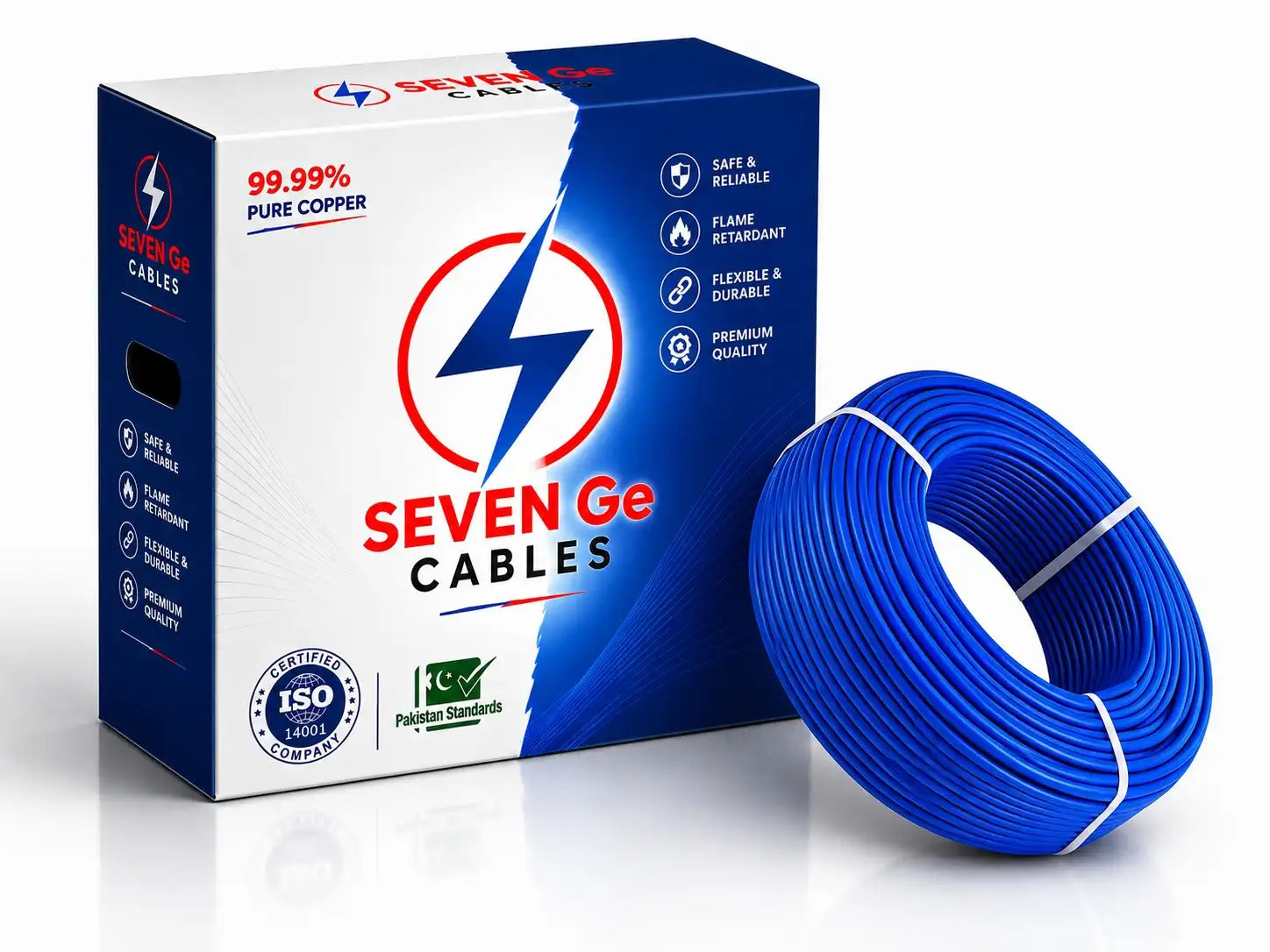

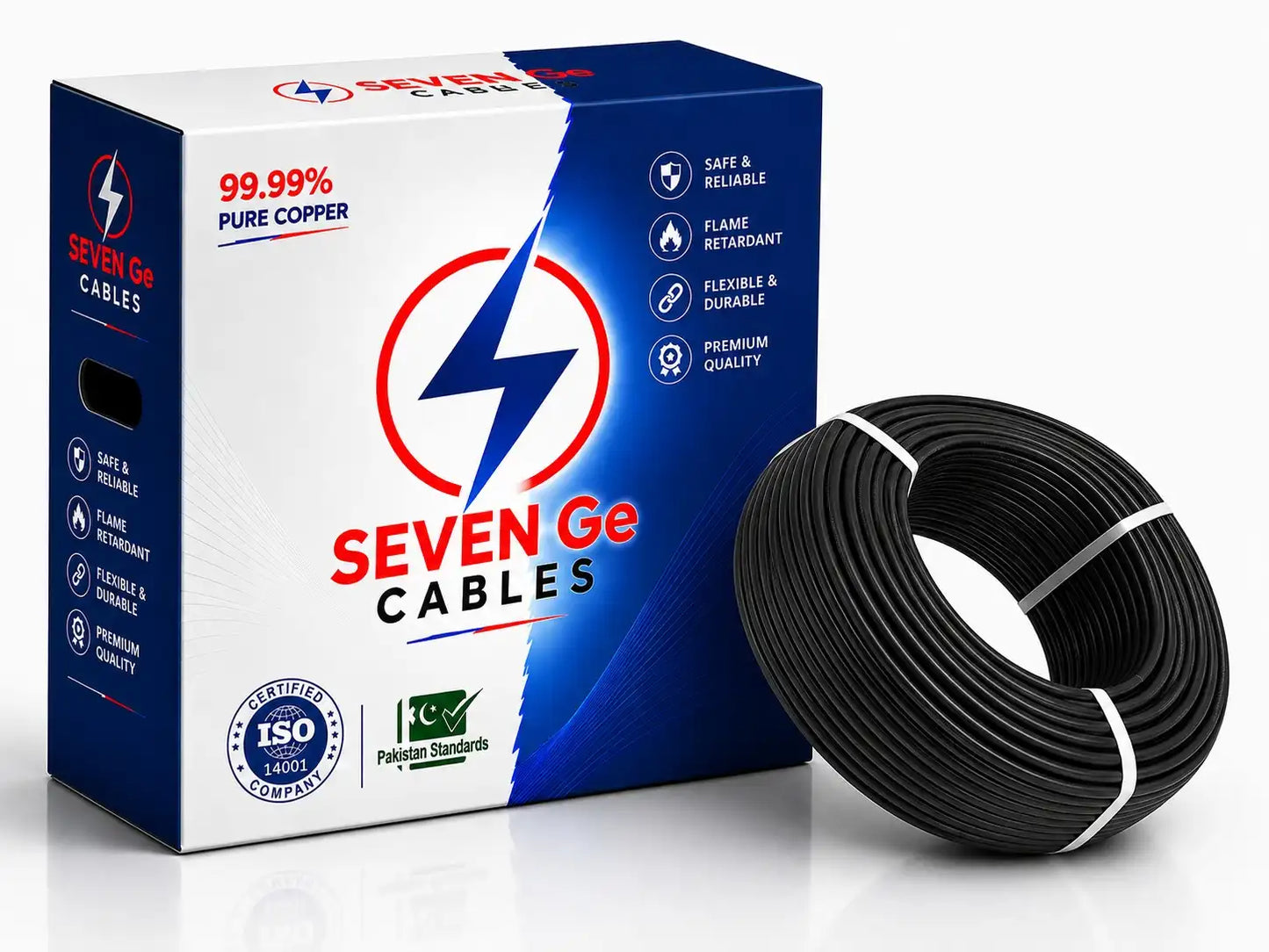

3/29 Single Core Copper Wire – 90 Meter
The 3/29 Single Core Copper Wire is an imperial-standard single-core electrical wire designed for residential and light commercial wiring applications.
The 3/29 designation refers to a conductor made from 3 twisted copper strands, with each strand measuring approximately 0.029 inch (0.74 mm) in diameter.
The wire features PVC (Polyvinyl Chloride) insulation and is available in multiple colors, making it suitable for a range of electrical wiring and identification requirements.
Product Specifications
| Specification | Details |
|---|---|
| Wire Size | 3/29 |
| Length | 90 meters |
| Conductor | Copper |
| Number of Strands | 3 |
| Strand Diameter | 0.029 inch / approx. 0.74 mm |
| Insulation | PVC (Polyvinyl Chloride) |
| Temperature Rating | -40°C to 90°C |
| Voltage Rating | 240/480 V |
| Ampere Rating | 11 A |
| DC Resistance | 14.03 Ω/km |
| Insulation Resistance | 0.01 MΩ/km |
| Approx. Weight | 2.04 kg |
| Available Colors | Red, Black, Blue, Yellow, White |
Applications
- Residential house wiring
- Light commercial wiring
- General electrical installations
- Electrical circuits requiring single-core wire
